Raydium AMM V3 中的 Tick 系统详解

zero
发布于 2025-08-02 23:46
阅读 369

Raydium 的交易量近期一度超过了 Uniswap 在 23 条链上的总和，成为市场关注的焦点。本文将深入解析其 AMM V3 中的 Tick 系统，带你看懂这个关键机制是如何重新定义流动性管理效率的

## 概述
 Raydium AMM V3 采用了类似 Uniswap V3 的集中流动性模型，其核心是一个精密的 Tick 系统。这个系统通过多层数据结构来高效管理价格区间和流动性分布，主要包含四个核心概念：Tick、TickArray、TickMap 和 TickMapExtension
## 1. Tick - 价格点的基本单位
### 1.1 Tick 的定义
tick_array.rs中定义的 TickState 是价格系统的基本单位：

```rust
pub struct TickState {
    pub tick: i32,
    /// 当从左到右（右到左）跨越此tick时加上（减去）的净流动性量
    pub liquidity_net: i128,
    /// 此tick的总流动性
    pub liquidity_gross: u128,
    /// 此tick另一侧的每单位流动性费用增长
    pub fee_growth_outside_0_x64: u128,
    pub fee_growth_outside_1_x64: u128,
    /// 奖励增长数组
    pub reward_growths_outside_x64: [u128; REWARD_NUM],
    /// 合约升级预留字段
    pub padding: [u32; 13],
}
```
### 1.2 Tick 的核心特性
- **价格映射**：每个 tick 对应一个特定的价格点，价格 = 1.0001^tick
- **流动性管理**：记录该价格点的流动性信息
- **费用跟踪**：追踪费用和奖励的累积
- **边界检查**：必须在有效的价格范围内
### 1.3 Tick 的关键方法
- `initialize()`: 初始化 tick，确保 tick 值符合 tick_spacing 要求

```rust
    pub fn initialize(&mut self, tick: i32, tick_spacing: u16) -> Result<()> {
        //检查tick
        if TickState::check_is_out_of_boundary(tick) {
            return err!(ErrorCode::InvaildTickIndex);
        }
        require!(
            tick % i32::from(tick_spacing) == 0,
            ErrorCode::TickAndSpacingNotMatch
        );
        self.tick = tick;
        Ok(())
    }
```
-`update()`: 更新流动性，返回是否发生了初始化状态翻转

```rust
/// Updates a tick and returns true if the tick was flipped from initialized to uninitialized
    pub fn update(
        &mut self,
        tick_current: i32,
        liquidity_delta: i128,
        fee_growth_global_0_x64: u128,
        fee_growth_global_1_x64: u128,
        upper: bool,
        reward_infos: &[RewardInfo; REWARD_NUM],
    ) -> Result<bool> {
        let liquidity_gross_before = self.liquidity_gross;
        let liquidity_gross_after =
            liquidity_math::add_delta(liquidity_gross_before, liquidity_delta)?;

// Either liquidity_gross_after becomes 0 (uninitialized) XOR liquidity_gross_before
        // was zero (initialized)
        let flipped = (liquidity_gross_after == 0) != (liquidity_gross_before == 0);
        if liquidity_gross_before == 0 {
            // by convention, we assume that all growth before a tick was initialized happened _below_ the tick
            if self.tick <= tick_current {
                self.fee_growth_outside_0_x64 = fee_growth_global_0_x64;
                self.fee_growth_outside_1_x64 = fee_growth_global_1_x64;
                self.reward_growths_outside_x64 = RewardInfo::get_reward_growths(reward_infos);
            }
        }

self.liquidity_gross = liquidity_gross_after;

// when the lower (upper) tick is crossed left to right (right to left),
        // liquidity must be added (removed)
        self.liquidity_net = if upper {
            self.liquidity_net.checked_sub(liquidity_delta)
        } else {
            self.liquidity_net.checked_add(liquidity_delta)
        }
        .unwrap();
        Ok(flipped)
    }
```
- `cross()`: 处理价格跨越该 tick 时的状态变化

```rust
/// Transitions to the current tick as needed by price movement, returning the amount of liquidity
    /// added (subtracted) when tick is crossed from left to right (right to left)
    pub fn cross(
        &mut self,
        fee_growth_global_0_x64: u128,
        fee_growth_global_1_x64: u128,
        reward_infos: &[RewardInfo; REWARD_NUM],
    ) -> i128 {
        self.fee_growth_outside_0_x64 = fee_growth_global_0_x64
            .checked_sub(self.fee_growth_outside_0_x64)
            .unwrap();
        self.fee_growth_outside_1_x64 = fee_growth_global_1_x64
            .checked_sub(self.fee_growth_outside_1_x64)
            .unwrap();

for i in 0..REWARD_NUM {
            if !reward_infos[i].initialized() {
                continue;
            }

self.reward_growths_outside_x64[i] = reward_infos[i]
                .reward_growth_global_x64
                .checked_sub(self.reward_growths_outside_x64[i])
                .unwrap();
        }

self.liquidity_net
    }
```
-` clear()`: 清除流动性
```rust
    pub fn clear(&mut self) {
        self.liquidity_net = 0;
        self.liquidity_gross = 0;
        self.fee_growth_outside_0_x64 = 0;
        self.fee_growth_outside_1_x64 = 0;
        self.reward_growths_outside_x64 = [0; REWARD_NUM];
    }
```
- `is_initialized()`:该tick是否初始化

```rust
   pub fn is_initialized(self) -> bool {
       //判断该tick的总流动性(liquidity_gross)是否为0
        self.liquidity_gross != 0
    }
```
-` check_is_out_of_boundary()`:该tick是否符合边界要求
```rust
    /// Common checks for a valid tick input.
    /// A tick is valid if it lies within tick boundaries
    pub fn check_is_out_of_boundary(tick: i32) -> bool {
        tick < tick_math::MIN_TICK || tick > tick_math::MAX_TICK
    }
```
## 2. TickArray - Tick 的容器
### 2.1 TickArray 的结构
TickArrayState 是 Tick 的容器，每个 TickArray 包含 60 个连续的 Tick

```rust
pub struct TickArrayState {
    pub pool_id: Pubkey,
    pub start_tick_index: i32,
    pub ticks: [TickState; TICK_ARRAY_SIZE_USIZE], // 60个tick
    pub initialized_tick_count: u8,
    pub recent_epoch: u64,
    pub padding: [u8; 107],
}
```
### 2.2 TickArray 的设计原理
- **批量管理**：将 60 个连续的 tick 组织在一起，减少账户数量
- **内存优化**：使用 zero_copy 避免序列化开销
- **范围定位**：通过 start_tick_index 快速定位 tick 范围
- **初始化跟踪**：记录已初始化的 tick 数量
### 2.3 TickArray 的关键算法

```rust
    /// Get next initialized tick in tick array, `current_tick_index` can be any tick index, in other words, `current_tick_index` not exactly a point in the tickarray,
    /// and current_tick_index % tick_spacing maybe not equal zero.
    /// If price move to left tick <= current_tick_index, or to right tick > current_tick_index
    pub fn next_initialized_tick(
        &mut self,
        current_tick_index: i32,
        tick_spacing: u16,
        zero_for_one: bool,
    ) -> Result<Option<&mut TickState>> {
        //计算出当前的tick array上的start tick index
        let current_tick_array_start_index =
            TickArrayState::get_array_start_index(current_tick_index, tick_spacing);
        //传入的current_tick_index 不在当前tick array
        if current_tick_array_start_index != self.start_tick_index {
            return Ok(None);
        }
        //在当前tick array里的位置
        let mut offset_in_array =
            (current_tick_index - self.start_tick_index) / i32::from(tick_spacing);
        //从当前位置offset_in_array开始找
        if zero_for_one {
            //token a swap token b
            //token a的价格降低 tick 从右往左
            //从后往前找
            while offset_in_array >= 0 {
                if self.ticks[offset_in_array as usize].is_initialized() {
                    return Ok(self.ticks.get_mut(offset_in_array as usize));
                }
                offset_in_array = offset_in_array - 1;
            }
        } else {
            offset_in_array = offset_in_array + 1;
            while offset_in_array < TICK_ARRAY_SIZE {
                if self.ticks[offset_in_array as usize].is_initialized() {
                    return Ok(self.ticks.get_mut(offset_in_array as usize));
                }
                offset_in_array = offset_in_array + 1;
            }
        }
        Ok(None)
    }

// 计算 tick 在 TickArray 中的偏移量
fn get_tick_offset_in_array(self, tick_index: i32, tick_spacing: u16) -> Result<usize> {
    let start_tick_index = TickArrayState::get_array_start_index(tick_index, tick_spacing);
    let offset_in_array = ((tick_index - self.start_tick_index) / i32::from(tick_spacing)) as usize;
    Ok(offset_in_array)
}

// 获取数组的起始索引
pub fn get_array_start_index(tick_index: i32, tick_spacing: u16) -> i32 {
    let tick_spacing_i32 = i32::from(tick_spacing);
    let array_tick_count = tick_spacing_i32 * TICK_ARRAY_SIZE;

    if tick_index < 0 {
        (tick_index + 1) / array_tick_count - 1
    } else {
        tick_index / array_tick_count
    } * array_tick_count
}

/// Input an arbitrary tick_index, output the start_index of the tick_array it sits on
/// 该函数的作用是根据tick_index和tick_spacing来计算出它所在的TickArray的起始tick index
 pub fn get_array_start_index(tick_index: i32, tick_spacing: u16) -> i32 {
     //一个tick array有多少元素
     let ticks_in_array = TickArrayState::tick_count(tick_spacing);
     //判断是第几个tick array
     let mut start = tick_index / ticks_in_array;
     //遵循左开右闭[-100,0)  [0,100) 如果为负数,要减1
     //假如为-50 ticks_in_array为100
     //-50/100=0，如果不减1的话会落在0,减1落在-1
     //如果是-100 ticks_in_array为100
     //-100/100=-1  -100%100=0 还是落在-1
     if tick_index < 0 && tick_index % ticks_in_array != 0 {
          start = start - 1
      }
      start * ticks_in_array
}

//根据tick_sapcing来判断他是否是TickArray的起始值
pub fn check_is_valid_start_index(tick_index: i32, tick_spacing: u16) -> bool {
     // 检查tick是否合法
     if TickState::check_is_out_of_boundary(tick_index) {
        //如果超过边界，大于最大值 判定为不合法
        if tick_index > tick_math::MAX_TICK {
            return false;
         }
         //如果刚好等于最小值，则判定为合法
          let min_start_index =
               TickArrayState::get_array_start_index(tick_math::MIN_TICK, tick_spacing);
            return tick_index == min_start_index;
      }
      //根据tick_sapcing来判断他是否是TickArray的起始值
      tick_index % TickArrayState::tick_count(tick_spacing) == 0
}
//用于计算tickArray中覆盖了多少tick
//tick_sapcing 是tick之间的步长
//tick 为1 该tick_count 60*1=60
//tick 为5 该tick_count 60*5=300
//[150,155,160,165,170,175,180,185,190]
pub fn tick_count(tick_spacing: u16) -> i32 {
    TICK_ARRAY_SIZE * i32::from(tick_spacing)
}
```
## 3. TickMap (位图) - 快速索引系统
### 3.1 位图的基本概念
位图是一个高效的数据结构，用于快速查找已初始化的 TickArray，在tick_array_bit_map.rs 中定义

```rust
pub const TICK_ARRAY_BITMAP_SIZE: i32 = 512;
pub type TickArryBitmap = [u64; 8]; // 512位的位图

// 计算位图能覆盖的最大tick范围
pub fn max_tick_in_tickarray_bitmap(tick_spacing: u16) -> i32 {
    i32::from(tick_spacing) * TICK_ARRAY_SIZE * TICK_ARRAY_BITMAP_SIZE
}

pub fn get_bitmap_tick_boundary(tick_array_start_index: i32, tick_spacing: u16) -> (i32, i32) {
    //一个bitmap有管理多少tick
    let ticks_in_one_bitmap: i32 = max_tick_in_tickarray_bitmap(tick_spacing);
    //该tick在第几个bitmap(后续可扩展tick map extension)
    let mut m = tick_array_start_index.abs() / ticks_in_one_bitmap;

if tick_array_start_index < 0 && tick_array_start_index.abs() % ticks_in_one_bitmap != 0 {
        //处理边界问题处理
        //负数 [-512，0）
        //正数 [0,512)
        m += 1;
    }

let min_value: i32 = ticks_in_one_bitmap * m;
    if tick_array_start_index < 0 {
        (-min_value, -min_value + ticks_in_one_bitmap)
    } else {
        //(start,end)
        //start 这个bitmap覆盖的最小的tick值
        //end 是这个bitmap覆盖的最大的tick值
        (min_value, min_value + ticks_in_one_bitmap)
    }
}
/// Given a tick, calculate whether the tickarray it belongs to has been initialized.
pub fn check_current_tick_array_is_initialized(
    bit_map: U1024,
    tick_current: i32,
    tick_spacing: u16,
) -> Result<(bool, i32)> {
    if TickState::check_is_out_of_boundary(tick_current) {
        return err!(ErrorCode::InvaildTickIndex);
    }
    let multiplier = i32::from(tick_spacing) * TICK_ARRAY_SIZE;
    // +512 把索引从[-512,511] 映射到[0,1023]
    // 最多有两个 bitmap 1024个tickArray
    let mut compressed = tick_current / multiplier + 512;
    if tick_current < 0 && tick_current % multiplier != 0 {
        // round towards negative infinity
        // 处理负数
        compressed -= 1;
    }
    let bit_pos = compressed.abs();
    // set current bit
    //在第 bit_pos 位置上有一个1，其他位都是0的掩码
    let mask = U1024::one() << bit_pos.try_into().unwrap();
    // 检查第 bit_pos 位是否为1
    // - 对 bit_map 和 mask 执行按位与操作
    // - 如果 bit_map 在第 bit_pos 位为1，有流动性 结果为 mask
    // - 如果 bit_map 在第 bit_pos 位为0，没有流动性 结果为0
    let masked = bit_map & mask;
    // check the current bit whether initialized
    let initialized = masked != U1024::default();
    if initialized {
        // （有流动性,计算当前tick array的起始索引）
        return Ok((true, (compressed - 512) * multiplier));
    }
    // the current bit is not initialized
    return Ok((false, (compressed - 512) * multiplier));
}
```
### 3.2 位图的工作原理

- **位映射**：每一位代表一个 TickArray 的初始化状态
- **快速查找**：使用位操作（leading_zeros, trailing_zeros）快速定位
- **范围覆盖**：每个位图覆盖 512 个 TickArray
- **双向搜索**：支持向上和向下搜索下一个已初始化的 TickArray
### 3.3 位图搜索算法

```rust
/// 找到下一个初始化的tick array的起始索引
pub fn next_initialized_tick_array_start_index(
    bit_map: U1024,
    last_tick_array_start_index: i32,
    tick_spacing: u16,
    zero_for_one: bool,
) -> (bool, i32) {
    assert!(TickArrayState::check_is_valid_start_index(
        last_tick_array_start_index,
        tick_spacing
    ));

let tick_boundary = max_tick_in_tickarray_bitmap(tick_spacing);
    /// 计算下一个tick array的起始索引
    let next_tick_array_start_index = if zero_for_one {
        // 从下往上找
        last_tick_array_start_index - TickArrayState::tick_count(tick_spacing)
    } else {
        // 从上往下找
        last_tick_array_start_index + TickArrayState::tick_count(tick_spacing)
    };

// 检查下一个tick array的起始索引是否在边界内
    if next_tick_array_start_index < -tick_boundary || next_tick_array_start_index >= tick_boundary
    {
        return (false, last_tick_array_start_index);
    }

let multiplier = i32::from(tick_spacing) * TICK_ARRAY_SIZE;
    //
    let mut compressed = next_tick_array_start_index / multiplier + 512;
    if next_tick_array_start_index < 0 && next_tick_array_start_index % multiplier != 0 {
        // round towards negative infinity
        compressed -= 1;
    }
    let bit_pos = compressed.abs();

if zero_for_one {
        // tick from upper to lower
        // find from highter bits to lower bits
        /// << 左移运算符 左边的位置丢弃，右边加0
        /// 把bit_map 左移 1024 - bit_pos - 1 位 (把bit_pos位置，移到首位)
        /// 找到最左边的1
        let offset_bit_map = bit_map << (1024 - bit_pos - 1).try_into().unwrap();
        let next_bit = most_significant_bit(offset_bit_map);
        /// 找到下一个tick array的起始索引
        if next_bit.is_some() {
            let next_array_start_index =
                (bit_pos - i32::from(next_bit.unwrap()) - 512) * multiplier;
            (true, next_array_start_index)
        } else {
            // not found til to the end
            (false, -tick_boundary)
        }
    } else {
        // tick from lower to upper
        // find from lower bits to highter bits
        /// >> 右移运算符 右边的位置丢弃，左边加0
        /// 把bit_map 右移 bit_pos 位 (把bit_pos位置，移到末位)
        /// 找到最右边的1
        let offset_bit_map = bit_map >> (bit_pos).try_into().unwrap();
        let next_bit = least_significant_bit(offset_bit_map);
        if next_bit.is_some() {
            let next_array_start_index =
                (bit_pos + i32::from(next_bit.unwrap()) - 512) * multiplier;
            (true, next_array_start_index)
        } else {
            // not found til to the end
            (
                false,
                tick_boundary - TickArrayState::tick_count(tick_spacing),
            )
        }
    }
}
```
## 4. TickMapExtension - 扩展位图系统
### 4.1 扩展系统的必要性
由于单个位图只能覆盖有限的价格范围，TickArrayBitmapExtension提供了扩展支持：

```rust
const EXTENSION_TICKARRAY_BITMAP_SIZE: usize = 14;
#[account(zero_copy(unsafe))]
#[repr(C, packed)]
#[derive(Debug)]
pub struct TickArrayBitmapExtension {
    pub pool_id: Pubkey,
    /// Packed initialized tick array state for start_tick_index is positive
    /// 每个bitmap 用8个 u64 来表示,每个 tick array 用 1 位来表示
    pub positive_tick_array_bitmap: [[u64; 8]; EXTENSION_TICKARRAY_BITMAP_SIZE],
    /// Packed initialized tick array state for start_tick_index is negitive
    pub negative_tick_array_bitmap: [[u64; 8]; EXTENSION_TICKARRAY_BITMAP_SIZE],
}
```
### 4.2 扩展系统的设计
- **分层管理**：核心位图处理常用价格范围，扩展位图处理极端价格
- **正负分离**：分别管理正数和负数 tick 范围
- **多位图阵列**：每个方向有 14 个位图，大大扩展了覆盖范围
- **边界检查**：确保 tick 在扩展范围内
### 4.3 扩展位图的核心算法

```rust
fn get_bitmap_offset(tick_index: i32, tick_spacing: u16) -> Result<usize> {
     require!(
        TickArrayState::check_is_valid_start_index(tick_index, tick_spacing),
        ErrorCode::InvaildTickIndex
    );
    Self::check_extension_boundary(tick_index, tick_spacing)?;
    let ticks_in_one_bitmap = max_tick_in_tickarray_bitmap(tick_spacing);
    //tick_index.abs() / ticks_in_one_bitmap 计算出这是第几个bitmap
    //ick_index.abs() / ticks_in_one_bitmap - 1
    // - -1 = 因为扩展位图从第 1 个位图开始（第 0 个是基础位图）
    // 先使用bitmap ，bitmap不够再使用bitmap extension
    let mut offset = tick_index.abs() / ticks_in_one_bitmap - 1;
    //[) 左闭右开，处理边界 所以需要-1
     if tick_index < 0 && tick_index.abs() % ticks_in_one_bitmap == 0 {
            offset -= 1;
     }
    Ok(offset as usize)
}
// 获取对应的位图
fn get_bitmap(&self, tick_index: i32, tick_spacing: u16) -> Result<(usize, TickArryBitmap)> {
    let offset = Self::get_bitmap_offset(tick_index, tick_spacing)?;
    if tick_index < 0 {
        Ok((offset, self.negative_tick_array_bitmap[offset]))
    } else {
        Ok((offset, self.positive_tick_array_bitmap[offset]))
    }
}

/// Check if the tick in tick array bitmap extension
 pub fn check_extension_boundary(tick_index: i32, tick_spacing: u16) -> Result<()> {
     let positive_tick_boundary = max_tick_in_tickarray_bitmap(tick_spacing);
     let negative_tick_boundary = -positive_tick_boundary;
     require_gt!(tick_math::MAX_TICK, positive_tick_boundary);
     require_gt!(negative_tick_boundary, tick_math::MIN_TICK);
     if tick_index >= negative_tick_boundary && tick_index < positive_tick_boundary {
        return err!(ErrorCode::InvalidTickArrayBoundary);
     }
     Ok(())
 }
 /// Check if the tick array is initialized
 pub fn check_tick_array_is_initialized(
     &self,
     tick_array_start_index: i32,
     tick_spacing: u16,
) -> Result<(bool, i32)> {
   let (_, tickarray_bitmap) = self.get_bitmap(tick_array_start_index, tick_spacing)?;

let tick_array_offset_in_bitmap =
         Self::tick_array_offset_in_bitmap(tick_array_start_index, tick_spacing);

if U512(tickarray_bitmap).bit(tick_array_offset_in_bitmap as usize) {
          return Ok((true, tick_array_start_index));
    }
    Ok((false, tick_array_start_index))
 }

 /// Flip the value of tick in the bitmap.
 pub fn flip_tick_array_bit(
        &mut self,
        tick_array_start_index: i32,
        tick_spacing: u16,
 ) -> Result<()> {
        let (offset, tick_array_bitmap) = self.get_bitmap(tick_array_start_index, tick_spacing)?;
        //计算中该tick在bitmap(512个tick array)中第几个位置
        let tick_array_offset_in_bitmap =
            Self::tick_array_offset_in_bitmap(tick_array_start_index, tick_spacing);
        let tick_array_bitmap = U512(tick_array_bitmap);
        //如果该tick在第5个，那么需要将第5个位置的bitmap
        //mask 就是0000000000100000
        let mask = U512::one() << tick_array_offset_in_bitmap;
        //
        if tick_array_start_index < 0 {
            self.negative_tick_array_bitmap[offset as usize] = tick_array_bitmap.bitxor(mask).0;
        } else {
            self.positive_tick_array_bitmap[offset as usize] = tick_array_bitmap.bitxor(mask).0;
        }
        Ok(())
    }
     //计算出该tick第几个TickArray上
    pub fn tick_array_offset_in_bitmap(tick_array_start_index: i32, tick_spacing: u16) -> i32 {
        // 计算出该tick在bitmap里的位置
        let m = tick_array_start_index.abs() % max_tick_in_tickarray_bitmap(tick_spacing);
        // 计算出该tick第几个TickArray上
        let mut tick_array_offset_in_bitmap = m / TickArrayState::tick_count(tick_spacing);

if tick_array_start_index < 0 && m != 0 {
            // 一个bitmap是有512个TickArray组成的，
            // 如果为负数 左开右闭[)
            // 用512减去 tick_array_offset_in_bitmap
            // [[],[],[],[],[]]
            // 所以为了方便理解，我们可以认为
            // 第0个TickArray在bitmap的第511位
            // 第1个TickArray在bitmap的第510位
            // 第2个TickArray在bitmap的第509位
            // 第511个TickArray在bitmap的第0位
            tick_array_offset_in_bitmap = TICK_ARRAY_BITMAP_SIZE - tick_array_offset_in_bitmap;
        }
        tick_array_offset_in_bitmap
    }
```
## 5. 系统协同工作流程
### 5.1 查找下一个已初始化的 TickArray
next_initialized_tick_array_from_one_bitmap 展示了完整的查找流程：

```rust
pub fn next_initialized_tick_array_from_one_bitmap(
    &self,
    last_tick_array_start_index: i32,
    tick_spacing: u16,
    zero_for_one: bool,
) -> Result<(bool, i32)> {
    // 1. 计算下一个搜索位置
    let multiplier = TickArrayState::tick_count(tick_spacing);
    let next_tick_array_start_index = if zero_for_one {
        last_tick_array_start_index - multiplier
    } else {
        last_tick_array_start_index + multiplier
    };

    // 2. 边界检查
    if next_tick_array_start_index < min_tick_array_start_index
        || next_tick_array_start_index > max_tick_array_start_index {
        return Ok((false, next_tick_array_start_index));
    }

    // 3. 获取对应位图
    let (_, tickarray_bitmap) = self.get_bitmap(next_tick_array_start_index, tick_spacing)?;

    // 4. 在位图中搜索
    Ok(Self::next_initialized_tick_array_in_bitmap(
        tickarray_bitmap,
        next_tick_array_start_index,
        tick_spacing,
        zero_for_one,
    ))
}
```
### 5.2 位图内部搜索算法
next_initialized_tick_array_in_bitmap实现了高效的位操作搜索：
```rust
    pub fn next_initialized_tick_array_in_bitmap(
        tickarray_bitmap: TickArryBitmap,
        next_tick_array_start_index: i32,
        tick_spacing: u16,
        zero_for_one: bool,
    ) -> (bool, i32) {
        let (bitmap_min_tick_boundary, bitmap_max_tick_boundary) =
            get_bitmap_tick_boundary(next_tick_array_start_index, tick_spacing);

let tick_array_offset_in_bitmap =
            Self::tick_array_offset_in_bitmap(next_tick_array_start_index, tick_spacing);
        if zero_for_one {
            // tick from upper to lower
            // find from highter bits to lower bits
            let offset_bit_map = U512(tickarray_bitmap)
                << (TICK_ARRAY_BITMAP_SIZE - 1 - tick_array_offset_in_bitmap);

let next_bit = if offset_bit_map.is_zero() {
                None
            } else {
                Some(u16::try_from(offset_bit_map.leading_zeros()).unwrap())
            };

//原始位图: 1 1 0 1 0 1 1 0
            //位置:    7 6 5 4 3 2 1 0
            //左移一位  1 0 1 0 1 1 0 0
            //左移2位   0 1 0 1 1 0 0 0
            //左移3位   1 0 1 1 0 0 0 0
            //左移4位   0 1 1 0 0 0 0 0

if next_bit.is_some() {
                let next_array_start_index = next_tick_array_start_index
                    - i32::from(next_bit.unwrap()) * TickArrayState::tick_count(tick_spacing);
                return (true, next_array_start_index);
            } else {
                // not found til to the end
                return (false, bitmap_min_tick_boundary);
            }
        } else {
            // tick from lower to upper
            // find from lower bits to highter bits
            // 把低位给抹除掉，如果为0(第0位为1)
            let offset_bit_map = U512(tickarray_bitmap) >> tick_array_offset_in_bitmap;

//原始位图: 1 1 0 1 0 1 1 0
            // 位置:    7 6 5 4 3 2 1 0

// 右移1位:  0 1 1 0 1 0 1 1
            // 位置:    7 6 5 4 3 2 1 0

// 右移2位:  0 0 1 1 0 1 0 1
            // 位置:    7 6 5 4 3 2 1 0

// 右移3位:  0 0 0 1 1 0 1 0
            // 位置:    7 6 5 4 3 2 1 0

```rust
    pub fn get_first_initialized_tick_array(
        &self,
        tickarray_bitmap_extension: &Option<TickArrayBitmapExtension>,
        zero_for_one: bool,
    ) -> Result<(bool, i32)> {
    ///
        let (is_initialized, start_index) =
            ///判断是否在基础bitmap中，如果不在就到extension中查询
            if self.is_overflow_default_tickarray_bitmap(vec![self.tick_current]) {
                tickarray_bitmap_extension
                    .unwrap()
                    .check_tick_array_is_initialized(
                        TickArrayState::get_array_start_index(self.tick_current, self.tick_spacing),
                        self.tick_spacing,
                    )?
            } else {
                //在基础bitmap中
                check_current_tick_array_is_initialized(
                    U1024(self.tick_array_bitmap),
                    self.tick_current,
                    self.tick_spacing.into(),
                )?
            };
        if is_initialized {
            return Ok((true, start_index));
        }
        //
        let next_start_index = self.next_initialized_tick_array_start_index(
            tickarray_bitmap_extension,
            TickArrayState::get_array_start_index(self.tick_current, self.tick_spacing),
            zero_for_one,
        )?;
        require!(
            next_start_index.is_some(),
            ErrorCode::InsufficientLiquidityForDirection
        );
        return Ok((false, next_start_index.unwrap()));
    }

pub fn next_initialized_tick_array_start_index(
        &self,
        tickarray_bitmap_extension: &Option<TickArrayBitmapExtension>,
        mut last_tick_array_start_index: i32,
        zero_for_one: bool,
    ) -> Result<Option<i32>> {
        last_tick_array_start_index =
            TickArrayState::get_array_start_index(last_tick_array_start_index, self.tick_spacing);

loop {
            //现在基础bitmap中查询
            let (is_found, start_index) =
                tick_array_bit_map::next_initialized_tick_array_start_index(
                    U1024(self.tick_array_bitmap),
                    last_tick_array_start_index,
                    self.tick_spacing,
                    zero_for_one,
                );
            if is_found {
                return Ok(Some(start_index));
            }
            last_tick_array_start_index = start_index;

if tickarray_bitmap_extension.is_none() {
                return err!(ErrorCode::MissingTickArrayBitmapExtensionAccount);
            }
            //没找到就去extension中查询
            let (is_found, start_index) = tickarray_bitmap_extension
                .unwrap()
                .next_initialized_tick_array_from_one_bitmap(
                    last_tick_array_start_index,
                    self.tick_spacing,
                    zero_for_one,
                )?;
            if is_found {
                return Ok(Some(start_index));
            }
            last_tick_array_start_index = start_index;

if last_tick_array_start_index < tick_math::MIN_TICK
                || last_tick_array_start_index > tick_math::MAX_TICK
            {
                return Ok(None);
            }
        }
    }
```

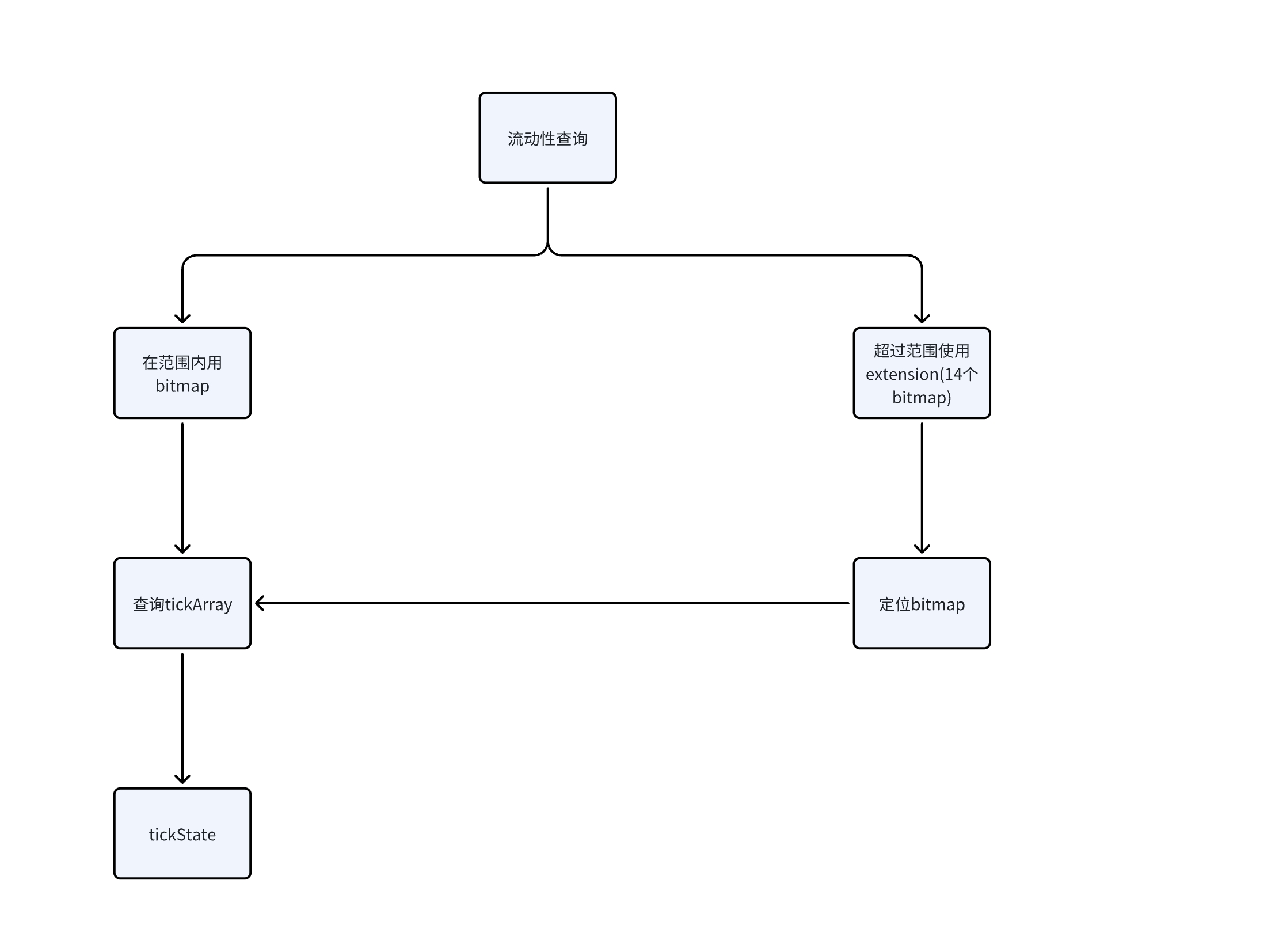

### 6.2 关系图
![image.png](https://img.learnblockchain.cn/attachments/2025/08/OPmK63SU688e2ffd8f9ad.png)

## 7. 性能优化策略
### 7.1 位操作优化
- **leading_zeros/trailing_zero**：使用 CPU 原生指令快速查找
- **位移操作**：通过左移和右移快速定位搜索范围
- **掩码操作**：使用 XOR 操作高效翻转位状态
### 7.2 内存布局优化
- **zero_copy**：避免序列化/反序列化开销
- **packed 结构**：减少内存占用
- **批量操作**：一次处理多个 tick
### 7.3 算法复杂度
- **查找复杂度**：O(1) - 通过位操作实现常数时间查找
- **更新复杂度**：O(1) - 直接位操作更新
- **空间复杂度**：O(n) - 线性空间存储
## 8. 实际应用场景
### 8.1 交易执行
在执行 swap 操作时，系统需要：
1. 根据当前价格找到对应的 TickArray
2. 在 TickArray 中查找下一个有流动性的 tick
3. 如果当前 TickArray 没有足够流动性，通过位图查找下一个 TickArray
4. 重复此过程直到完成交易或达到价格限制
### 8.2 流动性管理
添加或移除流动性时：
1. 确定流动性范围对应的 tick 边界
2. 初始化相关的 TickArray（如果需要）
3. 更新位图标记 TickArray 状态
4. 更新 tick 的流动性信息
### 8.3 价格发现
系统通过 tick 系统实现精确的价格发现：
- 每个 tick 对应精确的价格点
- 流动性集中在特定价格区间
- 通过位图快速跳跃到有流动性的价格区间
## 9. 总结
Raydium AMM V3 的 Tick 系统是一个精心设计的多层架构：
- Tick：最基本的价格和流动性单位
- TickArray：批量管理 tick，减少账户数量
- TickMap：位图索引，实现快速查找TickArray
- TickMapExtension：扩展位图，支持更大价格范围
这个系统通过巧妙的数据结构设计和位操作优化，实现了：
- 高效查找：O(1) 时间复杂度的 TickArray 定位
- 内存优化：紧凑的数据布局和批量管理
- 可扩展性：支持极大的价格范围
- 精确控制：精确的流动性分布和价格发现
这种设计使得 Raydium AMM V3 能够在保持高性能的同时，为用户提供精确的流动性控制和高效的交易执行。

概述

Raydium AMM V3 采用了类似 Uniswap V3 的集中流动性模型，其核心是一个精密的 Tick 系统。这个系统通过多层数据结构来高效管理价格区间和流动性分布，主要包含四个核心概念：Tick、TickArray、TickMap 和 TickMapExtension

1. Tick - 价格点的基本单位

1.1 Tick 的定义

tick_array.rs中定义的 TickState 是价格系统的基本单位：

pub struct TickState {
    pub tick: i32,
    /// 当从左到右（右到左）跨越此tick时加上（减去）的净流动性量
    pub liquidity_net: i128,
    /// 此tick的总流动性
    pub liquidity_gross: u128,
    /// 此tick另一侧的每单位流动性费用增长
    pub fee_growth_outside_0_x64: u128,
    pub fee_growth_outside_1_x64: u128,
    /// 奖励增长数组
    pub reward_growths_outside_x64: [u128; REWARD_NUM],
    /// 合约升级预留字段
    pub padding: [u32; 13],
}

1.2 Tick 的核心特性

价格映射：每个 tick 对应一个特定的价格点，价格 = 1.0001^tick
流动性管理：记录该价格点的流动性信息
费用跟踪：追踪费用和奖励的累积
边界检查：必须在有效的价格范围内
1.3 Tick 的关键方法
initialize(): 初始化 tick，确保 tick 值符合 tick_spacing 要求

    pub fn initialize(&mut self, tick: i32, tick_spacing: u16) -> Result&lt;()> {
        //检查tick
        if TickState::check_is_out_of_boundary(tick) {
            return err!(ErrorCode::InvaildTickIndex);
        }
        require!(
            tick % i32::from(tick_spacing) == 0,
            ErrorCode::TickAndSpacingNotMatch
        );
        self.tick = tick;
        Ok(())
    }

-update(): 更新流动性，返回是否发生了初始化状态翻转

/// Updates a tick and returns true if the tick was flipped from initialized to uninitialized
    pub fn update(
        &mut self,
        tick_current: i32,
        liquidity_delta: i128,
        fee_growth_global_0_x64: u128,
        fee_growth_global_1_x64: u128,
        upper: bool,
        reward_infos: &[RewardInfo; REWARD_NUM],
    ) -> Result&lt;bool> {
        let liquidity_gross_before = self.liquidity_gross;
        let liquidity_gross_after =
            liquidity_math::add_delta(liquidity_gross_before, liquidity_delta)?;

        // Either liquidity_gross_after becomes 0 (uninitialized) XOR liquidity_gross_before
        // was zero (initialized)
        let flipped = (liquidity_gross_after == 0) != (liquidity_gross_before == 0);
        if liquidity_gross_before == 0 {
            // by convention, we assume that all growth before a tick was initialized happened _below_ the tick
            if self.tick &lt;= tick_current {
                self.fee_growth_outside_0_x64 = fee_growth_global_0_x64;
                self.fee_growth_outside_1_x64 = fee_growth_global_1_x64;
                self.reward_growths_outside_x64 = RewardInfo::get_reward_growths(reward_infos);
            }
        }

        self.liquidity_gross = liquidity_gross_after;

        // when the lower (upper) tick is crossed left to right (right to left),
        // liquidity must be added (removed)
        self.liquidity_net = if upper {
            self.liquidity_net.checked_sub(liquidity_delta)
        } else {
            self.liquidity_net.checked_add(liquidity_delta)
        }
        .unwrap();
        Ok(flipped)
    }

cross(): 处理价格跨越该 tick 时的状态变化

/// Transitions to the current tick as needed by price movement, returning the amount of liquidity
    /// added (subtracted) when tick is crossed from left to right (right to left)
    pub fn cross(
        &mut self,
        fee_growth_global_0_x64: u128,
        fee_growth_global_1_x64: u128,
        reward_infos: &[RewardInfo; REWARD_NUM],
    ) -> i128 {
        self.fee_growth_outside_0_x64 = fee_growth_global_0_x64
            .checked_sub(self.fee_growth_outside_0_x64)
            .unwrap();
        self.fee_growth_outside_1_x64 = fee_growth_global_1_x64
            .checked_sub(self.fee_growth_outside_1_x64)
            .unwrap();

        for i in 0..REWARD_NUM {
            if !reward_infos[i].initialized() {
                continue;
            }

            self.reward_growths_outside_x64[i] = reward_infos[i]
                .reward_growth_global_x64
                .checked_sub(self.reward_growths_outside_x64[i])
                .unwrap();
        }

        self.liquidity_net
    }

-clear(): 清除流动性

    pub fn clear(&mut self) {
        self.liquidity_net = 0;
        self.liquidity_gross = 0;
        self.fee_growth_outside_0_x64 = 0;
        self.fee_growth_outside_1_x64 = 0;
        self.reward_growths_outside_x64 = [0; REWARD_NUM];
    }

is_initialized():该tick是否初始化

   pub fn is_initialized(self) -> bool {
       //判断该tick的总流动性(liquidity_gross)是否为0
        self.liquidity_gross != 0
    }

-check_is_out_of_boundary():该tick是否符合边界要求

    /// Common checks for a valid tick input.
    /// A tick is valid if it lies within tick boundaries
    pub fn check_is_out_of_boundary(tick: i32) -> bool {
        tick &lt; tick_math::MIN_TICK || tick > tick_math::MAX_TICK
    }

2. TickArray - Tick 的容器

2.1 TickArray 的结构

TickArrayState 是 Tick 的容器，每个 TickArray 包含 60 个连续的 Tick

pub struct TickArrayState {
    pub pool_id: Pubkey,
    pub start_tick_index: i32,
    pub ticks: [TickState; TICK_ARRAY_SIZE_USIZE], // 60个tick
    pub initialized_tick_count: u8,
    pub recent_epoch: u64,
    pub padding: [u8; 107],
}

2.2 TickArray 的设计原理

批量管理：将 60 个连续的 tick 组织在一起，减少账户数量
内存优化：使用 zero_copy 避免序列化开销
范围定位：通过 start_tick_index 快速定位 tick 范围
初始化跟踪：记录已初始化的 tick 数量
2.3 TickArray 的关键算法

    /// Get next initialized tick in tick array, `current_tick_index` can be any tick index, in other words, `current_tick_index` not exactly a point in the tickarray,
    /// and current_tick_index % tick_spacing maybe not equal zero.
    /// If price move to left tick &lt;= current_tick_index, or to right tick > current_tick_index
    pub fn next_initialized_tick(
        &mut self,
        current_tick_index: i32,
        tick_spacing: u16,
        zero_for_one: bool,
    ) -> Result&lt;Option&lt;&mut TickState>> {
        //计算出当前的tick array上的start tick index
        let current_tick_array_start_index =
            TickArrayState::get_array_start_index(current_tick_index, tick_spacing);
        //传入的current_tick_index 不在当前tick array
        if current_tick_array_start_index != self.start_tick_index {
            return Ok(None);
        }
        //在当前tick array里的位置
        let mut offset_in_array =
            (current_tick_index - self.start_tick_index) / i32::from(tick_spacing);
        //从当前位置offset_in_array开始找
        if zero_for_one {
            //token a swap token b
            //token a的价格降低 tick 从右往左
            //从后往前找
            while offset_in_array >= 0 {
                if self.ticks[offset_in_array as usize].is_initialized() {
                    return Ok(self.ticks.get_mut(offset_in_array as usize));
                }
                offset_in_array = offset_in_array - 1;
            }
        } else {
            offset_in_array = offset_in_array + 1;
            while offset_in_array &lt; TICK_ARRAY_SIZE {
                if self.ticks[offset_in_array as usize].is_initialized() {
                    return Ok(self.ticks.get_mut(offset_in_array as usize));
                }
                offset_in_array = offset_in_array + 1;
            }
        }
        Ok(None)
    }

// 计算 tick 在 TickArray 中的偏移量
fn get_tick_offset_in_array(self, tick_index: i32, tick_spacing: u16) -> Result&lt;usize> {
    let start_tick_index = TickArrayState::get_array_start_index(tick_index, tick_spacing);
    let offset_in_array = ((tick_index - self.start_tick_index) / i32::from(tick_spacing)) as usize;
    Ok(offset_in_array)
}

// 获取数组的起始索引
pub fn get_array_start_index(tick_index: i32, tick_spacing: u16) -> i32 {
    let tick_spacing_i32 = i32::from(tick_spacing);
    let array_tick_count = tick_spacing_i32 * TICK_ARRAY_SIZE;

    if tick_index &lt; 0 {
        (tick_index + 1) / array_tick_count - 1
    } else {
        tick_index / array_tick_count
    } * array_tick_count
}

/// Input an arbitrary tick_index, output the start_index of the tick_array it sits on
/// 该函数的作用是根据tick_index和tick_spacing来计算出它所在的TickArray的起始tick index
 pub fn get_array_start_index(tick_index: i32, tick_spacing: u16) -> i32 {
     //一个tick array有多少元素
     let ticks_in_array = TickArrayState::tick_count(tick_spacing);
     //判断是第几个tick array
     let mut start = tick_index / ticks_in_array;
     //遵循左开右闭[-100,0)  [0,100) 如果为负数,要减1
     //假如为-50 ticks_in_array为100
     //-50/100=0，如果不减1的话会落在0,减1落在-1
     //如果是-100 ticks_in_array为100
     //-100/100=-1  -100%100=0 还是落在-1
     if tick_index &lt; 0 && tick_index % ticks_in_array != 0 {
          start = start - 1
      }
      start * ticks_in_array
}

//根据tick_sapcing来判断他是否是TickArray的起始值
pub fn check_is_valid_start_index(tick_index: i32, tick_spacing: u16) -> bool {
     // 检查tick是否合法
     if TickState::check_is_out_of_boundary(tick_index) {
        //如果超过边界，大于最大值 判定为不合法
        if tick_index > tick_math::MAX_TICK {
            return false;
         }
         //如果刚好等于最小值，则判定为合法
          let min_start_index =
               TickArrayState::get_array_start_index(tick_math::MIN_TICK, tick_spacing);
            return tick_index == min_start_index;
      }
      //根据tick_sapcing来判断他是否是TickArray的起始值
      tick_index % TickArrayState::tick_count(tick_spacing) == 0
}
//用于计算tickArray中覆盖了多少tick
//tick_sapcing 是tick之间的步长
//tick 为1 该tick_count 60*1=60
//tick 为5 该tick_count 60*5=300
//[150,155,160,165,170,175,180,185,190]
pub fn tick_count(tick_spacing: u16) -> i32 {
    TICK_ARRAY_SIZE * i32::from(tick_spacing)
}

3. TickMap (位图) - 快速索引系统

3.1 位图的基本概念

位图是一个高效的数据结构，用于快速查找已初始化的 TickArray，在tick_array_bit_map.rs 中定义

pub const TICK_ARRAY_BITMAP_SIZE: i32 = 512;
pub type TickArryBitmap = [u64; 8]; // 512位的位图

// 计算位图能覆盖的最大tick范围
pub fn max_tick_in_tickarray_bitmap(tick_spacing: u16) -> i32 {
    i32::from(tick_spacing) * TICK_ARRAY_SIZE * TICK_ARRAY_BITMAP_SIZE
}

pub fn get_bitmap_tick_boundary(tick_array_start_index: i32, tick_spacing: u16) -> (i32, i32) {
    //一个bitmap有管理多少tick
    let ticks_in_one_bitmap: i32 = max_tick_in_tickarray_bitmap(tick_spacing);
    //该tick在第几个bitmap(后续可扩展tick map extension)
    let mut m = tick_array_start_index.abs() / ticks_in_one_bitmap;

    if tick_array_start_index &lt; 0 && tick_array_start_index.abs() % ticks_in_one_bitmap != 0 {
        //处理边界问题处理
        //负数 [-512，0）
        //正数 [0,512)
        m += 1;
    }

    let min_value: i32 = ticks_in_one_bitmap * m;
    if tick_array_start_index &lt; 0 {
        (-min_value, -min_value + ticks_in_one_bitmap)
    } else {
        //(start,end)
        //start 这个bitmap覆盖的最小的tick值
        //end 是这个bitmap覆盖的最大的tick值
        (min_value, min_value + ticks_in_one_bitmap)
    }
}
/// Given a tick, calculate whether the tickarray it belongs to has been initialized.
pub fn check_current_tick_array_is_initialized(
    bit_map: U1024,
    tick_current: i32,
    tick_spacing: u16,
) -> Result&lt;(bool, i32)> {
    if TickState::check_is_out_of_boundary(tick_current) {
        return err!(ErrorCode::InvaildTickIndex);
    }
    let multiplier = i32::from(tick_spacing) * TICK_ARRAY_SIZE;
    // +512 把索引从[-512,511] 映射到[0,1023]
    // 最多有两个 bitmap 1024个tickArray
    let mut compressed = tick_current / multiplier + 512;
    if tick_current &lt; 0 && tick_current % multiplier != 0 {
        // round towards negative infinity
        // 处理负数
        compressed -= 1;
    }
    let bit_pos = compressed.abs();
    // set current bit
    //在第 bit_pos 位置上有一个1，其他位都是0的掩码
    let mask = U1024::one() &lt;&lt; bit_pos.try_into().unwrap();
    // 检查第 bit_pos 位是否为1
    // - 对 bit_map 和 mask 执行按位与操作
    // - 如果 bit_map 在第 bit_pos 位为1，有流动性 结果为 mask
    // - 如果 bit_map 在第 bit_pos 位为0，没有流动性 结果为0
    let masked = bit_map & mask;
    // check the current bit whether initialized
    let initialized = masked != U1024::default();
    if initialized {
        // （有流动性,计算当前tick array的起始索引）
        return Ok((true, (compressed - 512) * multiplier));
    }
    // the current bit is not initialized
    return Ok((false, (compressed - 512) * multiplier));
}

3.2 位图的工作原理

位映射：每一位代表一个 TickArray 的初始化状态
快速查找：使用位操作（leading_zeros, trailing_zeros）快速定位
范围覆盖：每个位图覆盖 512 个 TickArray
双向搜索：支持向上和向下搜索下一个已初始化的 TickArray
3.3 位图搜索算法

/// 找到下一个初始化的tick array的起始索引
pub fn next_initialized_tick_array_start_index(
    bit_map: U1024,
    last_tick_array_start_index: i32,
    tick_spacing: u16,
    zero_for_one: bool,
) -> (bool, i32) {
    assert!(TickArrayState::check_is_valid_start_index(
        last_tick_array_start_index,
        tick_spacing
    ));

    let tick_boundary = max_tick_in_tickarray_bitmap(tick_spacing);
    /// 计算下一个tick array的起始索引
    let next_tick_array_start_index = if zero_for_one {
        // 从下往上找
        last_tick_array_start_index - TickArrayState::tick_count(tick_spacing)
    } else {
        // 从上往下找
        last_tick_array_start_index + TickArrayState::tick_count(tick_spacing)
    };

    // 检查下一个tick array的起始索引是否在边界内
    if next_tick_array_start_index &lt; -tick_boundary || next_tick_array_start_index >= tick_boundary
    {
        return (false, last_tick_array_start_index);
    }

    let multiplier = i32::from(tick_spacing) * TICK_ARRAY_SIZE;
    //
    let mut compressed = next_tick_array_start_index / multiplier + 512;
    if next_tick_array_start_index &lt; 0 && next_tick_array_start_index % multiplier != 0 {
        // round towards negative infinity
        compressed -= 1;
    }
    let bit_pos = compressed.abs();

    if zero_for_one {
        // tick from upper to lower
        // find from highter bits to lower bits
        /// &lt;&lt; 左移运算符 左边的位置丢弃，右边加0
        /// 把bit_map 左移 1024 - bit_pos - 1 位 (把bit_pos位置，移到首位)
        /// 找到最左边的1
        let offset_bit_map = bit_map &lt;&lt; (1024 - bit_pos - 1).try_into().unwrap();
        let next_bit = most_significant_bit(offset_bit_map);
        /// 找到下一个tick array的起始索引
        if next_bit.is_some() {
            let next_array_start_index =
                (bit_pos - i32::from(next_bit.unwrap()) - 512) * multiplier;
            (true, next_array_start_index)
        } else {
            // not found til to the end
            (false, -tick_boundary)
        }
    } else {
        // tick from lower to upper
        // find from lower bits to highter bits
        /// >> 右移运算符 右边的位置丢弃，左边加0
        /// 把bit_map 右移 bit_pos 位 (把bit_pos位置，移到末位)
        /// 找到最右边的1
        let offset_bit_map = bit_map >> (bit_pos).try_into().unwrap();
        let next_bit = least_significant_bit(offset_bit_map);
        if next_bit.is_some() {
            let next_array_start_index =
                (bit_pos + i32::from(next_bit.unwrap()) - 512) * multiplier;
            (true, next_array_start_index)
        } else {
            // not found til to the end
            (
                false,
                tick_boundary - TickArrayState::tick_count(tick_spacing),
            )
        }
    }
}

4. TickMapExtension - 扩展位图系统

4.1 扩展系统的必要性

由于单个位图只能覆盖有限的价格范围，TickArrayBitmapExtension提供了扩展支持：

const EXTENSION_TICKARRAY_BITMAP_SIZE: usize = 14;
#[account(zero_copy(unsafe))]
#[repr(C, packed)]
#[derive(Debug)]
pub struct TickArrayBitmapExtension {
    pub pool_id: Pubkey,
    /// Packed initialized tick array state for start_tick_index is positive
    /// 每个bitmap 用8个 u64 来表示,每个 tick array 用 1 位来表示
    pub positive_tick_array_bitmap: [[u64; 8]; EXTENSION_TICKARRAY_BITMAP_SIZE],
    /// Packed initialized tick array state for start_tick_index is negitive
    pub negative_tick_array_bitmap: [[u64; 8]; EXTENSION_TICKARRAY_BITMAP_SIZE],
}

4.2 扩展系统的设计

分层管理：核心位图处理常用价格范围，扩展位图处理极端价格
正负分离：分别管理正数和负数 tick 范围
多位图阵列：每个方向有 14 个位图，大大扩展了覆盖范围
边界检查：确保 tick 在扩展范围内
4.3 扩展位图的核心算法

fn get_bitmap_offset(tick_index: i32, tick_spacing: u16) -> Result&lt;usize> {
     require!(
        TickArrayState::check_is_valid_start_index(tick_index, tick_spacing),
        ErrorCode::InvaildTickIndex
    );
    Self::check_extension_boundary(tick_index, tick_spacing)?;
    let ticks_in_one_bitmap = max_tick_in_tickarray_bitmap(tick_spacing);
    //tick_index.abs() / ticks_in_one_bitmap 计算出这是第几个bitmap
    //ick_index.abs() / ticks_in_one_bitmap - 1
    // - -1 = 因为扩展位图从第 1 个位图开始（第 0 个是基础位图）
    // 先使用bitmap ，bitmap不够再使用bitmap extension
    let mut offset = tick_index.abs() / ticks_in_one_bitmap - 1;
    //[) 左闭右开，处理边界 所以需要-1
     if tick_index &lt; 0 && tick_index.abs() % ticks_in_one_bitmap == 0 {
            offset -= 1;
     }
    Ok(offset as usize)
}
// 获取对应的位图
fn get_bitmap(&self, tick_index: i32, tick_spacing: u16) -> Result&lt;(usize, TickArryBitmap)> {
    let offset = Self::get_bitmap_offset(tick_index, tick_spacing)?;
    if tick_index &lt; 0 {
        Ok((offset, self.negative_tick_array_bitmap[offset]))
    } else {
        Ok((offset, self.positive_tick_array_bitmap[offset]))
    }
}

 /// Check if the tick in tick array bitmap extension
 pub fn check_extension_boundary(tick_index: i32, tick_spacing: u16) -> Result&lt;()> {
     let positive_tick_boundary = max_tick_in_tickarray_bitmap(tick_spacing);
     let negative_tick_boundary = -positive_tick_boundary;
     require_gt!(tick_math::MAX_TICK, positive_tick_boundary);
     require_gt!(negative_tick_boundary, tick_math::MIN_TICK);
     if tick_index >= negative_tick_boundary && tick_index &lt; positive_tick_boundary {
        return err!(ErrorCode::InvalidTickArrayBoundary);
     }
     Ok(())
 }
 /// Check if the tick array is initialized
 pub fn check_tick_array_is_initialized(
     &self,
     tick_array_start_index: i32,
     tick_spacing: u16,
) -> Result&lt;(bool, i32)> {
   let (_, tickarray_bitmap) = self.get_bitmap(tick_array_start_index, tick_spacing)?;

   let tick_array_offset_in_bitmap =
         Self::tick_array_offset_in_bitmap(tick_array_start_index, tick_spacing);

   if U512(tickarray_bitmap).bit(tick_array_offset_in_bitmap as usize) {
          return Ok((true, tick_array_start_index));
    }
    Ok((false, tick_array_start_index))
 }

 /// Flip the value of tick in the bitmap.
 pub fn flip_tick_array_bit(
        &mut self,
        tick_array_start_index: i32,
        tick_spacing: u16,
 ) -> Result&lt;()> {
        let (offset, tick_array_bitmap) = self.get_bitmap(tick_array_start_index, tick_spacing)?;
        //计算中该tick在bitmap(512个tick array)中第几个位置
        let tick_array_offset_in_bitmap =
            Self::tick_array_offset_in_bitmap(tick_array_start_index, tick_spacing);
        let tick_array_bitmap = U512(tick_array_bitmap);
        //如果该tick在第5个，那么需要将第5个位置的bitmap
        //mask 就是0000000000100000
        let mask = U512::one() &lt;&lt; tick_array_offset_in_bitmap;
        //
        if tick_array_start_index &lt; 0 {
            self.negative_tick_array_bitmap[offset as usize] = tick_array_bitmap.bitxor(mask).0;
        } else {
            self.positive_tick_array_bitmap[offset as usize] = tick_array_bitmap.bitxor(mask).0;
        }
        Ok(())
    }
     //计算出该tick第几个TickArray上
    pub fn tick_array_offset_in_bitmap(tick_array_start_index: i32, tick_spacing: u16) -> i32 {
        // 计算出该tick在bitmap里的位置
        let m = tick_array_start_index.abs() % max_tick_in_tickarray_bitmap(tick_spacing);
        // 计算出该tick第几个TickArray上
        let mut tick_array_offset_in_bitmap = m / TickArrayState::tick_count(tick_spacing);

        if tick_array_start_index &lt; 0 && m != 0 {
            // 一个bitmap是有512个TickArray组成的，
            // 如果为负数 左开右闭[)
            // 用512减去 tick_array_offset_in_bitmap
            // [[],[],[],[],[]]
            // 所以为了方便理解，我们可以认为
            // 第0个TickArray在bitmap的第511位
            // 第1个TickArray在bitmap的第510位
            // 第2个TickArray在bitmap的第509位
            // 第511个TickArray在bitmap的第0位
            tick_array_offset_in_bitmap = TICK_ARRAY_BITMAP_SIZE - tick_array_offset_in_bitmap;
        }
        tick_array_offset_in_bitmap
    }

5. 系统协同工作流程

5.1 查找下一个已初始化的 TickArray

next_initialized_tick_array_from_one_bitmap 展示了完整的查找流程：

pub fn next_initialized_tick_array_from_one_bitmap(
    &self,
    last_tick_array_start_index: i32,
    tick_spacing: u16,
    zero_for_one: bool,
) -> Result&lt;(bool, i32)> {
    // 1. 计算下一个搜索位置
    let multiplier = TickArrayState::tick_count(tick_spacing);
    let next_tick_array_start_index = if zero_for_one {
        last_tick_array_start_index - multiplier
    } else {
        last_tick_array_start_index + multiplier
    };

    // 2. 边界检查
    if next_tick_array_start_index &lt; min_tick_array_start_index
        || next_tick_array_start_index > max_tick_array_start_index {
        return Ok((false, next_tick_array_start_index));
    }

    // 3. 获取对应位图
    let (_, tickarray_bitmap) = self.get_bitmap(next_tick_array_start_index, tick_spacing)?;

    // 4. 在位图中搜索
    Ok(Self::next_initialized_tick_array_in_bitmap(
        tickarray_bitmap,
        next_tick_array_start_index,
        tick_spacing,
        zero_for_one,
    ))
}

5.2 位图内部搜索算法

next_initialized_tick_array_in_bitmap实现了高效的位操作搜索：

    pub fn next_initialized_tick_array_in_bitmap(
        tickarray_bitmap: TickArryBitmap,
        next_tick_array_start_index: i32,
        tick_spacing: u16,
        zero_for_one: bool,
    ) -> (bool, i32) {
        let (bitmap_min_tick_boundary, bitmap_max_tick_boundary) =
            get_bitmap_tick_boundary(next_tick_array_start_index, tick_spacing);

        let tick_array_offset_in_bitmap =
            Self::tick_array_offset_in_bitmap(next_tick_array_start_index, tick_spacing);
        if zero_for_one {
            // tick from upper to lower
            // find from highter bits to lower bits
            let offset_bit_map = U512(tickarray_bitmap)
                &lt;&lt; (TICK_ARRAY_BITMAP_SIZE - 1 - tick_array_offset_in_bitmap);

            let next_bit = if offset_bit_map.is_zero() {
                None
            } else {
                Some(u16::try_from(offset_bit_map.leading_zeros()).unwrap())
            };

            //原始位图: 1 1 0 1 0 1 1 0
            //位置:    7 6 5 4 3 2 1 0
            //左移一位  1 0 1 0 1 1 0 0
            //左移2位   0 1 0 1 1 0 0 0
            //左移3位   1 0 1 1 0 0 0 0
            //左移4位   0 1 1 0 0 0 0 0

            if next_bit.is_some() {
                let next_array_start_index = next_tick_array_start_index
                    - i32::from(next_bit.unwrap()) * TickArrayState::tick_count(tick_spacing);
                return (true, next_array_start_index);
            } else {
                // not found til to the end
                return (false, bitmap_min_tick_boundary);
            }
        } else {
            // tick from lower to upper
            // find from lower bits to highter bits
            // 把低位给抹除掉，如果为0(第0位为1)
            let offset_bit_map = U512(tickarray_bitmap) >> tick_array_offset_in_bitmap;

            //原始位图: 1 1 0 1 0 1 1 0
            // 位置:    7 6 5 4 3 2 1 0

            // 右移1位:  0 1 1 0 1 0 1 1
            // 位置:    7 6 5 4 3 2 1 0

            // 右移2位:  0 0 1 1 0 1 0 1
            // 位置:    7 6 5 4 3 2 1 0

            // 右移3位:  0 0 0 1 1 0 1 0
            // 位置:    7 6 5 4 3 2 1 0

            let next_bit = if offset_bit_map.is_zero() {
                None
            } else {
                Some(u16::try_from(offset_bit_map.trailing_zeros()).unwrap())
            };
            if next_bit.is_some() {
                let next_array_start_index = next_tick_array_start_index
                    + i32::from(next_bit.unwrap()) * TickArrayState::tick_count(tick_spacing);
                return (true, next_array_start_index);
            } else {
                // not found til to the end
                //没有找到，返回当前bitmap中最后一个TickArray的起始位置
                return (
                    false,
                    bitmap_max_tick_boundary - TickArrayState::tick_count(tick_spacing),
                );
            }
        }
    }

6. Tick、TickArray、TickMap、TickMapExtension 关系

6.1 查找流动性

    pub fn get_first_initialized_tick_array(
        &self,
        tickarray_bitmap_extension: &Option&lt;TickArrayBitmapExtension>,
        zero_for_one: bool,
    ) -> Result&lt;(bool, i32)> {
    ///
        let (is_initialized, start_index) =
            ///判断是否在基础bitmap中，如果不在就到extension中查询
            if self.is_overflow_default_tickarray_bitmap(vec![self.tick_current]) {
                tickarray_bitmap_extension
                    .unwrap()
                    .check_tick_array_is_initialized(
                        TickArrayState::get_array_start_index(self.tick_current, self.tick_spacing),
                        self.tick_spacing,
                    )?
            } else {
                //在基础bitmap中
                check_current_tick_array_is_initialized(
                    U1024(self.tick_array_bitmap),
                    self.tick_current,
                    self.tick_spacing.into(),
                )?
            };
        if is_initialized {
            return Ok((true, start_index));
        }
        //
        let next_start_index = self.next_initialized_tick_array_start_index(
            tickarray_bitmap_extension,
            TickArrayState::get_array_start_index(self.tick_current, self.tick_spacing),
            zero_for_one,
        )?;
        require!(
            next_start_index.is_some(),
            ErrorCode::InsufficientLiquidityForDirection
        );
        return Ok((false, next_start_index.unwrap()));
    }

pub fn next_initialized_tick_array_start_index(
        &self,
        tickarray_bitmap_extension: &Option&lt;TickArrayBitmapExtension>,
        mut last_tick_array_start_index: i32,
        zero_for_one: bool,
    ) -> Result&lt;Option&lt;i32>> {
        last_tick_array_start_index =
            TickArrayState::get_array_start_index(last_tick_array_start_index, self.tick_spacing);

        loop {
            //现在基础bitmap中查询
            let (is_found, start_index) =
                tick_array_bit_map::next_initialized_tick_array_start_index(
                    U1024(self.tick_array_bitmap),
                    last_tick_array_start_index,
                    self.tick_spacing,
                    zero_for_one,
                );
            if is_found {
                return Ok(Some(start_index));
            }
            last_tick_array_start_index = start_index;

            if tickarray_bitmap_extension.is_none() {
                return err!(ErrorCode::MissingTickArrayBitmapExtensionAccount);
            }
            //没找到就去extension中查询
            let (is_found, start_index) = tickarray_bitmap_extension
                .unwrap()
                .next_initialized_tick_array_from_one_bitmap(
                    last_tick_array_start_index,
                    self.tick_spacing,
                    zero_for_one,
                )?;
            if is_found {
                return Ok(Some(start_index));
            }
            last_tick_array_start_index = start_index;

            if last_tick_array_start_index &lt; tick_math::MIN_TICK
                || last_tick_array_start_index > tick_math::MAX_TICK
            {
                return Ok(None);
            }
        }
    }

6.2 关系图

7. 性能优化策略

7.1 位操作优化

leading_zeros/trailing_zero：使用 CPU 原生指令快速查找
位移操作：通过左移和右移快速定位搜索范围
掩码操作：使用 XOR 操作高效翻转位状态
7.2 内存布局优化
zero_copy：避免序列化/反序列化开销
packed 结构：减少内存占用
批量操作：一次处理多个 tick
7.3 算法复杂度
查找复杂度：O(1) - 通过位操作实现常数时间查找
更新复杂度：O(1) - 直接位操作更新
空间复杂度：O(n) - 线性空间存储
8. 实际应用场景

8.1 交易执行

在执行 swap 操作时，系统需要：
1. 根据当前价格找到对应的 TickArray
2. 在 TickArray 中查找下一个有流动性的 tick
3. 如果当前 TickArray 没有足够流动性，通过位图查找下一个 TickArray
4. 重复此过程直到完成交易或达到价格限制
  8.2 流动性管理

  添加或移除流动性时：
5. 确定流动性范围对应的 tick 边界
6. 初始化相关的 TickArray（如果需要）
7. 更新位图标记 TickArray 状态
8. 更新 tick 的流动性信息
  8.3 价格发现

  系统通过 tick 系统实现精确的价格发现：
每个 tick 对应精确的价格点
流动性集中在特定价格区间
通过位图快速跳跃到有流动性的价格区间
9. 总结

Raydium AMM V3 的 Tick 系统是一个精心设计的多层架构：
Tick：最基本的价格和流动性单位
TickArray：批量管理 tick，减少账户数量
TickMap：位图索引，实现快速查找TickArray
TickMapExtension：扩展位图，支持更大价格范围这个系统通过巧妙的数据结构设计和位操作优化，实现了：
高效查找：O(1) 时间复杂度的 TickArray 定位
内存优化：紧凑的数据布局和批量管理
可扩展性：支持极大的价格范围
精确控制：精确的流动性分布和价格发现这种设计使得 Raydium AMM V3 能够在保持高性能的同时，为用户提供精确的流动性控制和高效的交易执行。

原创
学分: 20
分类: Solana
标签: Solana Raydium

本文参与登链社区写作激励计划，好文好收益，欢迎正在阅读的你也加入。

Raydium AMM V3 中的 Tick 系统详解

概述

1. Tick - 价格点的基本单位

1.1 Tick 的定义

1.2 Tick 的核心特性

1.3 Tick 的关键方法

2. TickArray - Tick 的容器

2.1 TickArray 的结构

2.2 TickArray 的设计原理

2.3 TickArray 的关键算法

3. TickMap (位图) - 快速索引系统

3.1 位图的基本概念

3.2 位图的工作原理

3.3 位图搜索算法

4. TickMapExtension - 扩展位图系统

4.1 扩展系统的必要性

4.2 扩展系统的设计

4.3 扩展位图的核心算法

5. 系统协同工作流程

5.1 查找下一个已初始化的 TickArray

5.2 位图内部搜索算法

6. Tick、TickArray、TickMap、TickMapExtension 关系

6.1 查找流动性

6.2 关系图

7. 性能优化策略

7.1 位操作优化

7.2 内存布局优化

7.3 算法复杂度

8. 实际应用场景

8.1 交易执行

8.2 流动性管理

8.3 价格发现

9. 总结

0 条评论

文章目录
